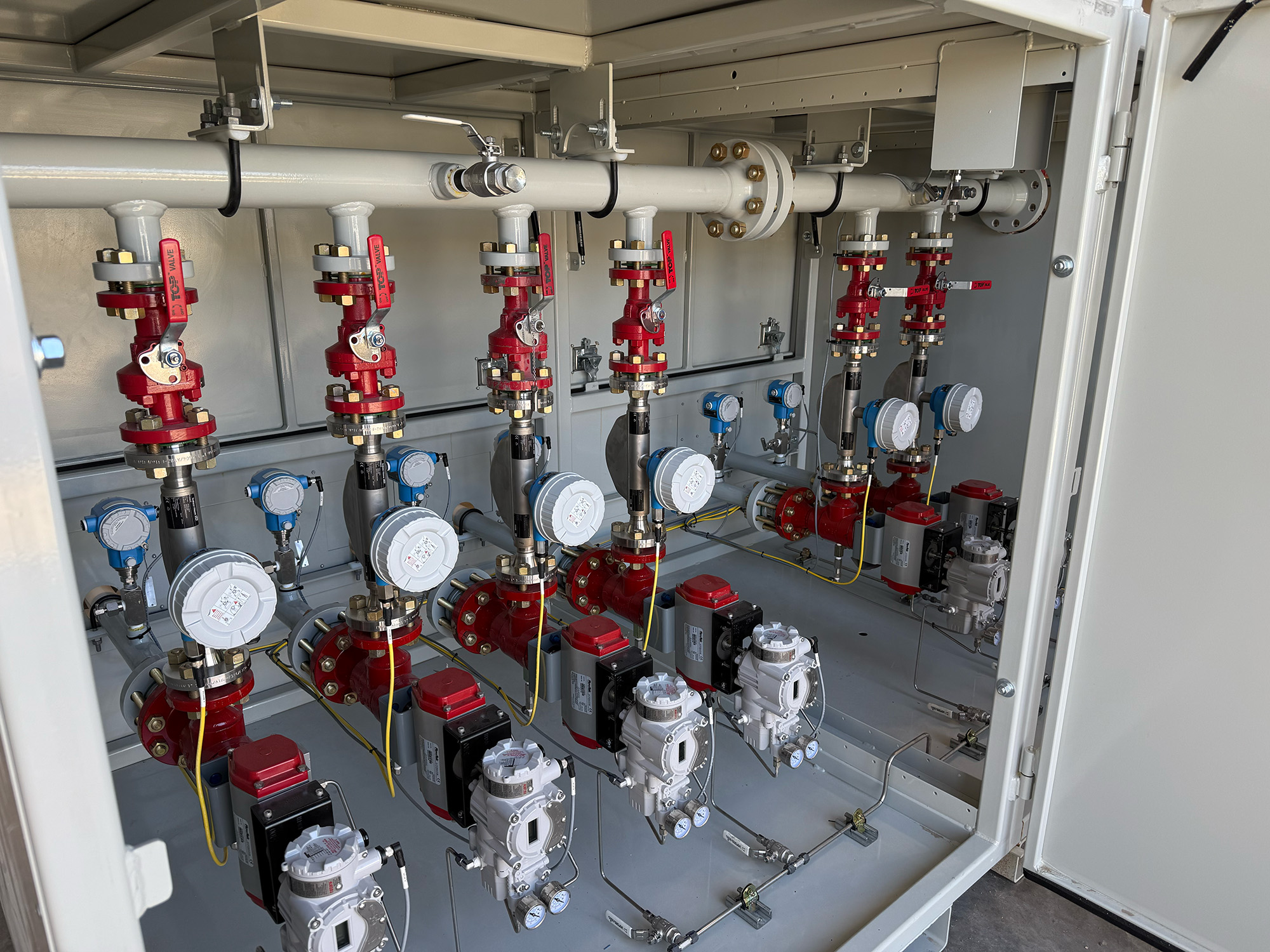

Gas lift measurement and optimization for the gas lift injection boxes.
Ready to Run
VaporLogix is committed to supporting operators across West Texas and New Mexico with innovative technology to increase oil production using cutting-edge tools and automation. Let’s break down the impact of our GLDiS (Gas Lift Distribution & Injection System).
Pre-Assembled
Our partners praise VaporLogix’s ready-to-run solution that arrives pre-assembled so that your team can save on installation time and cost. We have pre-plumbed inlet and outlet ports so that, when installers arrive on-site, connecting to existing flow lines is simple.
Automations and Controls
“Set it and forget it.” One of the key advantages of a VaporLogix GLDiS gas-lift system derives from Advanced Control Logic. What does that mean on your well sites? Our GLDiS automatically detects if any injection points are shut in or if the rate of gas delivery changes – the system adjusts in real-time to automatically redistribute gas injection.
Real-Time Monitoring
Like many operators, you need tools that integrate with existing SCADA (Supervisory Control and Data Acquisition) systems. You can receive alerts second-by-second, including monitoring of levels, alarms, and remote changes. With the proper expansion, you can even integrate the ability to control compressor station flows from your SCADA system
Small Footprint
Your site doesn’t need a lot of space to implement our Gas-Lift Distribution & Injection System. With as little as a 5’x5’ space, we can get you up and running for up to 4 wells. Move up to 8 wells with just a 10’x5’ space. The great news? Any of these systems can be expanded to support an unlimited number of wells.’
VaporLogix GLDiS can integrate with existing SCADA networks or be set up on VaporLogix-hosted SCADA solutions, allowing for real-time monitoring of gas-lift operations.
Endless Options for Customization
Customization is one of our market differentiators.
- Power Options: Whether your installation site offers utility power or solar power, we can work with both options easily
- Winterization: We can offer insulation solutions or even integrated heaters to ensure that Winter Weather doesn’t stop your operations and automations
- Actuation: Our pre-fab solutions offer both electric or pneumatic actuation if instrument air is present
- Colors/Decals/Design: Whether you want to put your company logo on the unit itself or integrate colors or a wrap, we offer flexible options – just include your desired design elements in your quote request.
The Nuts and Bolts
GLDiS is offered in both ANSI 600C.L. at 1,440 psi MAWP, and in 5K at 5,000 psi MAWP for HP distribution and measurement. Bolt-on booster compressor manifold options are available in any configuration needed for your production operation.
Measurement is achieved through a 1” Coriolis meter, configured for high-pressure gas service. In this application, the Coriolis meter provides a wide 100% turndown, low differential pressure, a compact footprint, and accurate measurement across changing gas conditions and properties.
Other Things VaporLogix Can Do
VaporLogix can also offer deeper support, including midstream contract review and settlement statements. This process can result not only in higher prices but also in greater settlement confidence. Our enhanced gas-phase control, composition verification, and sampling accuracy are key ways we help optimize your optimization and revenue.

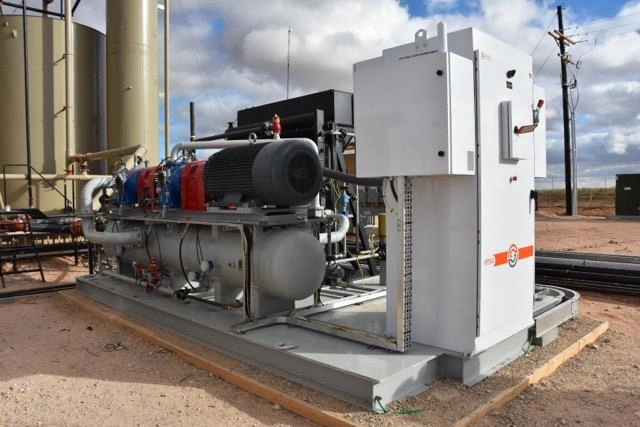

VaporLogix continues to innovate oil and gas with comprehensive services including full-site development. Whether you need well pad layout or just turnkey solutions, ask us about our proven efficiency and reliability. Services include complete vapor recovery management, gas-lift distribution & injection systems (GLDiS), and turnkey facility construction. Contact us today at 432-618-1549 to start your personalized quote.
